Rohde Fusing TE 200 MCC+ DH/400 V - 11,5 KW incl. Controller ST 411

Int. dimensions Ø740 x 460 mm

Ext. dimensions 1000 x 1050 x 820 mm

Volume: 200 Liter

Tmax.= 1320°C

Power: 12,5 kW

Supply: 20 A

Voltage: 400V

Connection: CEE 32 A

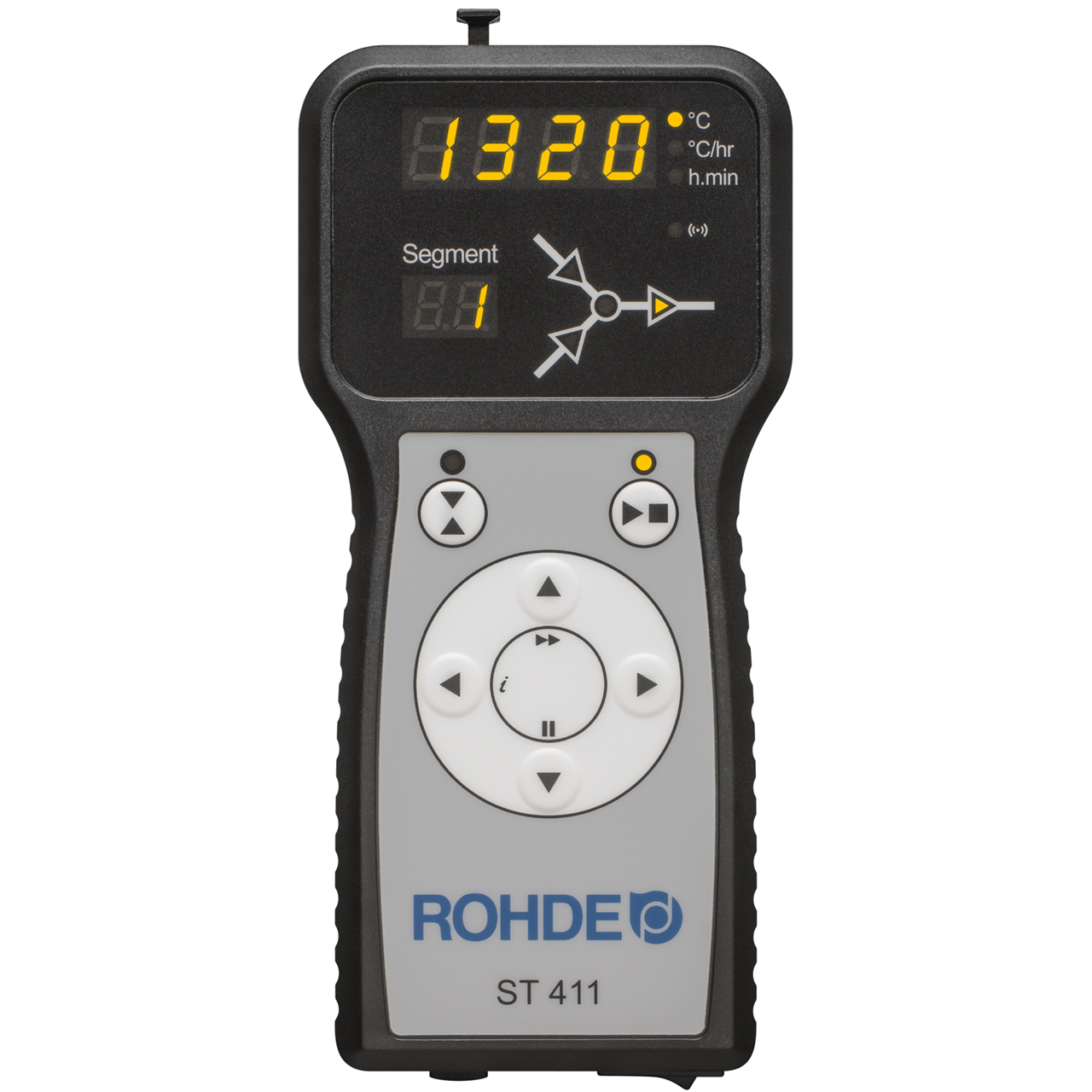

Wired controller Stafford ST 411

Kiln:

- The concept of these toploaders with lid heating is based on the proven design of the ROHDE Toploader TE-MCC+ series. They allow flexible use and, after extending with a heatable lid, are suitable for ceramic applications and glass processing such as Pâte-de-verre, glass casting, pre-heating or fusing.

- The lid heating elements are mounted on high-quality support rods and are optimally fixed enabling free radiation of heat. The unique fixing of heating elements to the kiln lid prevents particles falling from the lid insulation and enables the use of the top furniture layer without restriction.

- The cover heating of the TE-MCC + DH can be switched on or off as required.

- In connection with the control TC 504 or TC 507 an automatic 2-zone control is optionally possible.

- ROHDE top loaders with lid heating can be extended with an intermediate ring. You then choose between operating the lid heating or operating the intermediate ring.

Controller:

Control system with USB interface including USB stick

- 1-zone control

- 32 firing programs with 32 firing segments each

- 1 regulated heating / cooling ramp and holding time per

segment

- Hold times up to 99:59 h

- Heating rates between 1 and 999 ° C / h or "FULL"

- USB interface for data logging

- CPC14 plug connection, assignment: ROHDE standard

- WiFi module for connection to the ROHDEapp

- 1x freely programmable switching output
